STARTER BATTERY TESTER
QUICK TESTER KIOSK (QTK)
LEAD-ACID · AUTOMATED SORTING · INTEGRATED LABELING · INTENSIVE USE
The QTKv2 testing station is the fastest and most accurate sorting solution in the Be Energy range, designed to diagnose lead-acid starter batteries in just seconds, regardless of the vehicle type.
Compact, mobile, and autonomous, it enables you to instantly distinguish between regenerable and non-regenerable batteries using the BATTERIE PLUS process, while automatically measuring dimensions, weight, voltage, and temperature. A turnkey solution for collection centers, workshops, and logistics platforms.
| 7 s | 5 | 1,400 | <5% | 230V |
|---|---|---|---|---|
| MEASUREMENT CYCLE TIME | SIMULTANEOUS PARAMETERS MEASURED | TESTS / 8H | MARGIN OF ERROR | SINGLE-PHASE |
BE ENERGY SORTING TECHNOLOGY:
HOW DOES IT WORK?
At the core of the QTKv2, a proprietary algorithm analyzes the tested battery in 7 seconds, combining electrical characteristics (open-circuit voltage, impulse response, current) with physical parameters (dimensions, weight, temperature).
This combination of measurements reliably predicts whether the battery is eligible for the BATTERIE PLUS® regeneration process, distinguishing recoverable sulphated batteries from those with irreversible plate degradation.
3-STEP TEST SEQUENCE
From battery intake to label printing, the entire process takes an average of 20 seconds, with a throughput of 1,400 batteries per workday.
1
Measuring the battery's CCA
2
Diagnosis and results
3
Label printing
The QTK provides a reliable diagnosis of your batteries’ condition in just a few seconds. Its intuitive design ensures that you can start using it right away and easily read the results, allowing you to make quick, straightforward decisions.
Thanks to its speed, you can perform tests at a rapid pace without slowing down your operations, enabling you to make instant decisions right on the job site.
TECHNICAL SPECIFICATIONS
The QTKv2 is designed for high-intensity battery sorting environments where precision, speed, and traceability are essential. Suitable for logistics platforms, maintenance centers, and industrial sites, it optimizes battery diagnosis and sorting through reliable, instantly actionable measurements.
Its all-in-one architecture integrates all necessary instruments into a mobile chassis, enabling rapid deployment on site with full operational flexibility.
Result: a flexible solution that improves productivity, accelerates decision-making, and ensures full traceability of every tested battery.
| Specification | Details |
|---|---|
| MODEL | QTKv2 |
| TYPE | Starter battery testing station |
| APPLICATIONS | Lead-acid starter batteries |
| COMPATIBLE CHEMISTRIES | Lead-acid batteries |
| USER PROFILES | Garages, collection centers, distributors, regeneration centers |
| SOFTWARE | BancTestBatterie (Windows 7/8/10/11) |
| PROCESSING CAPACITY | Up to ~1,400 tests / day (8h) |
| MEASUREMENT CYCLE | 7 seconds |
| FULL CYCLE | ~20 seconds (including loading) |
| POWER SUPPLY | 230 VAC / 10 A / 50 Hz (C13 connector) |
| MAX POWER | 200 W (excluding PC) |
| INTEGRATED SOCKETS | Type F ×2 (PC + printer) |
| INTERFACE | USB-A |
| VOLTAGE RANGE | 6 – 15 V ± 0.5% |
| CURRENT RANGE | 0 – 2 A ± 2% |
| WEIGHT MEASUREMENT | 0 – 60 kg ± 0.1 kg |
| TEMPERATURE MEASUREMENT | 0 – 70 °C ± 1 °C |
| DIMENSIONS MEASUREMENT | Height: 0 – 40 cm / Length: 0 – 60 cm (± 2%) |
| RESULT RELIABILITY | >95% (charged, non-corroded batteries) |
| QTK DIMENSIONS | 100 × 90 × 80 cm |
| QTK WEIGHT | 140 kg (excluding accessories) |
| FRAME | Powder-coated welded steel structure |
| MOBILITY | 4 swivel lockable castor wheels |
| PRINTER INCLUDED | ZEBRA ZD220 (self-adhesive labels) |
| KEY BENEFITS | Speed, measurement reliability, traceability, automated sorting |
SCOPE OF APPLICATION
The QTKv2 is exclusively designed for lead-acid starter batteries. It covers the full range of automotive and two-wheeler applications.
TYPES OF BATTERIES HANDLED
Light vehicles
Cars, SUVs, light commercial vehicles
12V batteries of all capacities.

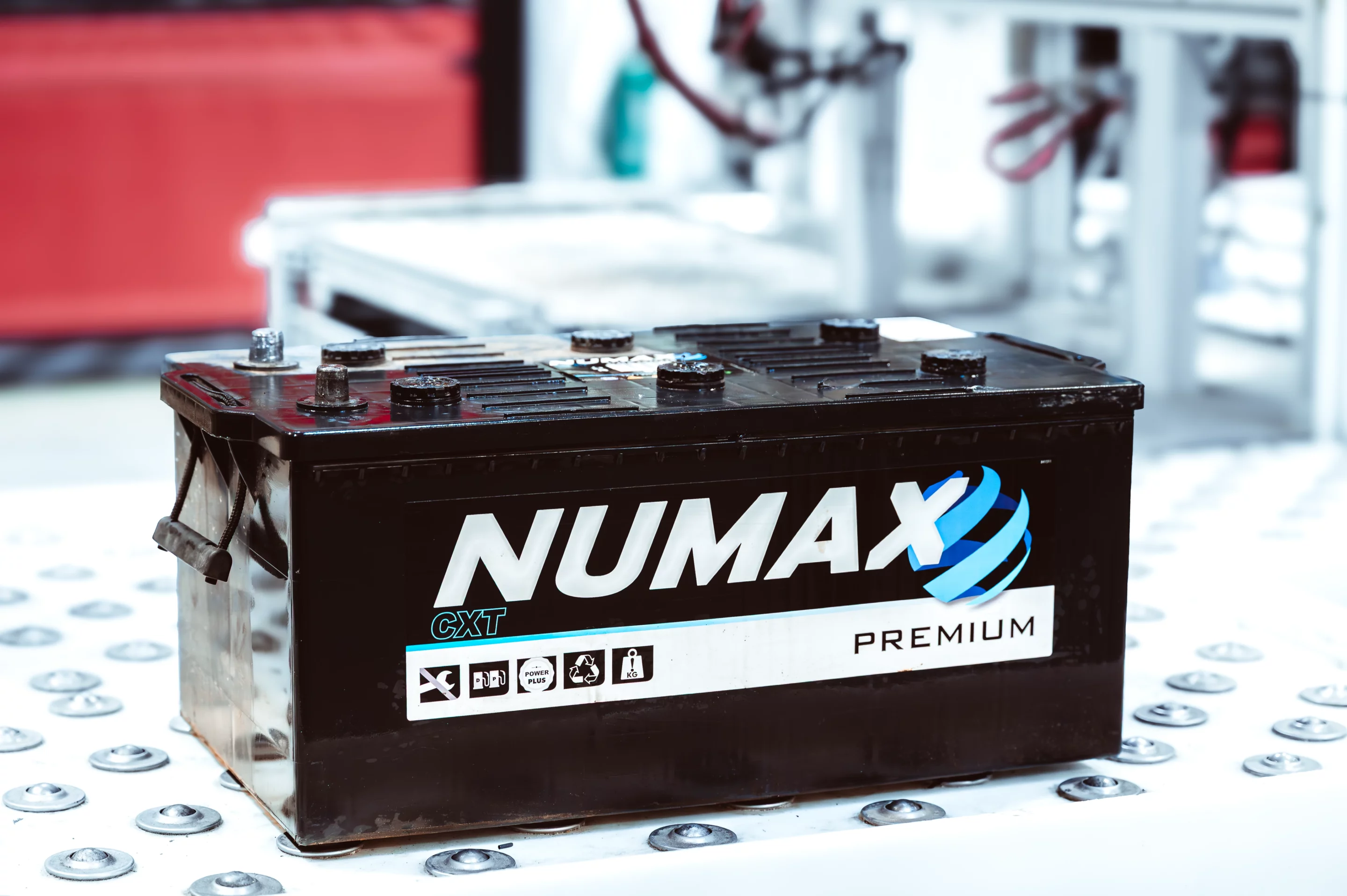

Heavy-duty vehicles
Trucks, buses, construction equipment
High-capacity 12V or 24V batteries.
PRECISE GUIDANCE FOR SMART BATTERY SORTING
The QTKv2 was designed to optimize battery sorting from the very first step and speed up the entire processing workflow. It instantly identifies batteries that need to be remanufactured, those that are still fully usable, and those that should be diverted to another stream, enabling simple and immediate decision-making. This clear and reliable reading facilitates workflow organization, reduces handling, and allows processing cycles to be carried out at a high pace.
As a result, you gain operational fluidity, operational efficiency, and consistent productivity throughout the entire chain.
A MOBILE, STANDALONE SOLUTION TO MAXIMIZE PRODUCTIVITY
Designed for industrial and logistics environments, the QTKv2 integrates all measurement instruments into a all-in-one mobile chassis, fully autonomous and ready to use. Its design enables fast deployment and on-site or workshop operation, directly at the point of battery handling. This mobility provides high flexibility in use and easily adapts to different working environments. Simple to deploy and intuitive to operate, it supports teams in their daily operations while ensuring performance, reliability, and continuous service.
A SORTING TOOL DESIGNED FOR FIELD PERFORMANCE
The QTKv2 is a diagnostic tool designed for field performance, capable of adapting to the demands of industrial, logistics, and maintenance environments. It combines all the essential battery diagnostic measurements into a single device, including cold cranking amperage (CCA) measurement, state of health (SOH) analysis, voltage monitoring, and starting capacity assessment. This data is obtained instantly and presented clearly to facilitate reading and decision-making directly on-site.
This approach allows teams to perform checks seamlessly, optimize each stage of the sorting process, and ensure efficient management of the battery fleet, even under intensive conditions.
1
MAXIMUM CADENCE
Up to 1,400 batteries tested per 8-hour workday thanks to an average process cycle of 20 seconds.
2
AUTOMATED AND RELIABLE SORTING
The algorithm simultaneously analyzes 5 parameters to deliver results with an error rate of less than 5% on healthy batteries.
3
INTEGRATED TRACEABILITY
Each accepted battery receives an automatically printed self-adhesive label including item code, dimensions, and test result.
4
MULTI-SENSOR MEASUREMENTS
Dimensions, temperature, and voltage are measured automatically.
5
MOBILE AND STANDALONE
Frame on 4 casters with brakes; requires no special infrastructure.
6
STATISTICS AND MONITORING
The built-in software stores all results and enables personalized tracking.
TARGET APPLICATIONS
The QTKv2 isn't just a tester, it's a tool for industrial development
Collection & Recycling Centers
Fast sorting of large volumes of used batteries for regeneration or recycling purposes.
Garages & Automotive Centers
Customer battery diagnostics prior to any BATTERIE PLUS regeneration process.
Fleet & Transport
Lifecycle management of batteries across large vehicle fleets.
Logistics Platforms
Qualification of returned batteries from automotive and heavy-duty fleets.
Battery Distributors
Inspection of end-of-life batteries before deciding on regeneration or disposal.
Regeneration Centers
Integration into regeneration service offerings with a collect-sort-process workflow.
PRODUCT POSITIONING
The fastest sorting station
on the market for starter batteries.
The QTKv2 combines multi-sensor automated measurements, label-based traceability, and industrial processing speed in a single-phase mobile all-in-one equipment.
